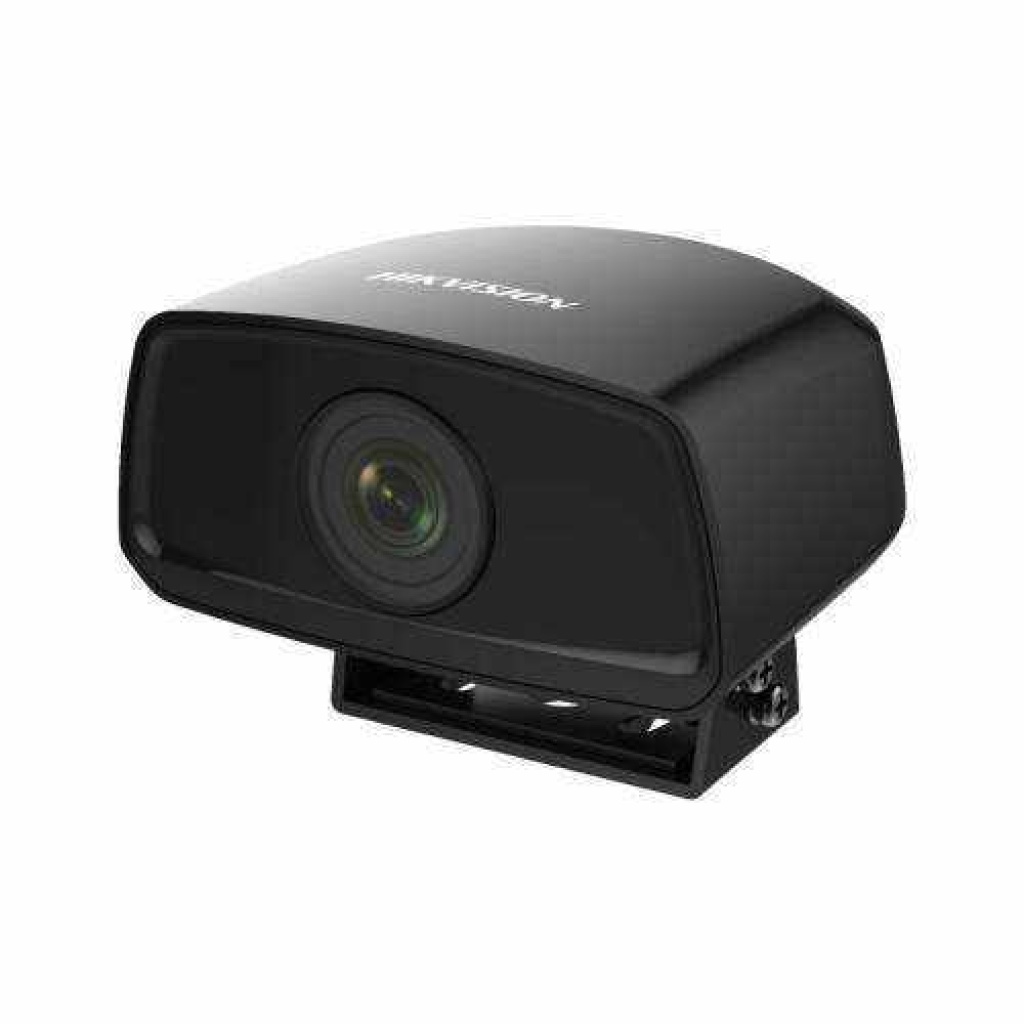

Hikvision NEI-XM6222 2MP Mobil Mini Bullet Network IP Kamera
High quality imaging with 2 MP resolution
Clear imaging against strong back light due to 120 dB trueWDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP66) and vandal proof (IK08)
Advanced streaming technology that enables smooth liveview and data self-correcting in poor network
3D DNR technology delivers clean and sharp images
Hik-Connect cloud service and APP for remotemanagement and views of devices
SpecificationCamera
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
P/N
P/N
Wide Dynamic Range
120dB
Day & Night
IR cut filter
Power-off Memory
Yes
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens
Focus
No
Lens Type & FOV
2.8 mm: horizontal FOV 102°, vertical FOV 54°, diagonal FOV 118°
4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Aperture
2.8 mm: F2.0
4 mm: F2.0 6 mm: F1.6
Lens Mount
M12 Illuminator
IR Range
Up to 10 m
Wavelength
850 nm
Smart Supplement Light
Yes Video
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Stream
50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Fourth Stream
No
Fifth Stream
No
Custom Stream
No
Video Compression
Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
BaseLine Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main Stream supports
H.265+
Main Stream supports
Bit Rate Control
CBR/VBR
Stream Type
Main Stream/Sub-Stream/Third Stream
Scalable Video Coding (SVC)
H.265 and H.264 support
Region of Interest (ROI)
4 fixed regions for each stream, and dynamic face tracking
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Type
Mono sound Network
Simultaneous Live View
Up to 20 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Smooth Streaming
Yes
User/Host
Up to 32 users 3 levels: Administrator, Operator and User
Network Storage
microSD/SDHC/SDXC card (128 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11; Local service: Chrome 41.0+, Firefox 30.0-51 Image
Smart IR
The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
Day/Night Switch
Day, Night, Auto, Schedule
Target Cropping
Yes
DNR
3D DNR
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR
>50dB
Privacy Mask
4 regions of privacy mask Interface
Alarm
No
Audio
1 built-in microphone
RS-485
No
Video Output
1 Vp-p Composite Output(75Ω/CVBS)
On-board Storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug
Power Output
No
Heater
No
Smart Feature-Set
Smart Event
Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection, audio exception detection General
Online Upgrade
Yes
Dual Backup
Yes
Firmware Version
5.5.85
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset
Yes
Embedded Open Platform
No
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
-ID, -IDM: 24 VDC-I/ND, -IM/ND: PoE (802.3af, 36 V to 57 V)
Power Consumption and Current
-ID, -IDM: 24 VDC, 0.2 A, 5 W-I/ND, -IM/ND: PoE(802.3af, 36 V to 57 V), 0.2 A to 0.1 A, class 3
Power Interface
-I/ND: RJ45 interface, PoE power supply-ID: Ø5.5 mm coaxial power plug, DC power supply-IDM: two-core Molex connector, DC power supply-IM/ND: four-core M12 aviation plug, PoE power supply
Material
ADC12/PC
Screw Material
SUS
Camera Dimension
99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
Package Dimension
252 × 160 × 95mm (9.9″ × 6.3″ × 3.7″)
Camera Weight
430 g (0.9 lb.)
With Package Weight
780 g (1.7 lb.) Approval
Class
Class B
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP66 (IEC 60529-2013), IK08(IEC 62262:2002)
Automotive and Railway
EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
