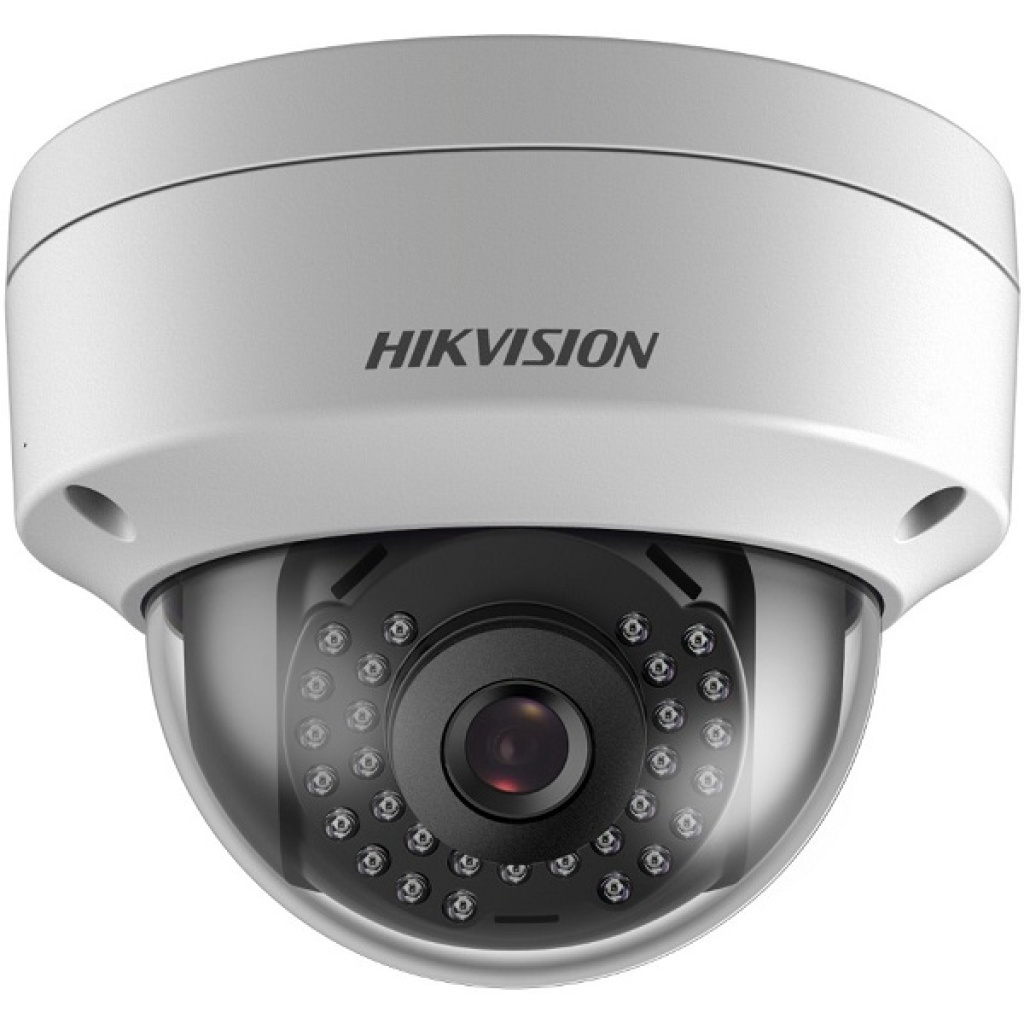

Hikvision NEI-M3141 4MP Akıllı Dome Network IP Kamera
Key Features
● 1/3" Progressive Scan CMOS
● 2560 × 1440 @ 20fps
● Color: 0.018 Lux @(F1.6, AGC ON), 0.028 Lux @(F2.0, AGC ON)
● 2.8 mm/4 mm/6 mm fixed lens
● H.265+, H.265, H.264+, H.264
● Three streams
● 120 dB WDR (Wide Dynamic Range)
● IR range: up to 30 m
● BLC/3D DNR/ROI/HLC
● IP67, IK10
● 3-Axis adjustment
Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Min. Illumination
Color: 0.018 Lux @ (F1.6, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
ICR Cut
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75° Lens
Lens Type & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°
4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88°
6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
Aperture
2.8 mm: F2.0; 4 mm: F2.0; 6 mm: F1.6
Lens Mount
M12 Illuminator
IR Range
30 m
Wavelength
850 nm
Smart Supplement Light
Yes Video
Max. Resolution
2560 × 1440
Main Stream
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 1fps (1280 × 720, 640 × 360)
60Hz: 1fps (1280 × 720, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Stream Type
Main stream/Sub-stream/Third stream
Scalable Video Coding (SVC)
H.265 and H.264 support
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Image
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR
≥ 52 dB
Privacy Mask
4 regions of privacy mask Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port Smart Feature-Set
Smart Event
Line crossing detection, up to 1 line configurable
Intrusion detection, up to 1 region configurable Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (illegal login, HDD full, HDD error) General
Linkage Method
Upload to FTP, notify surveillance center, send email, trigger capture
Web Client Language
English, Russian, Portuguese, Spanish, Turkish, Italian, French, Polish
General Function
Anti- flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail
Software Reset
Yes
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, Type 1 Class 3
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 7 W
Power Interface
Φ5.5 mm coaxial power plug
Material
Plastic upper cover, aluminum base
Camera Dimension
Φ111 mm × 82.4 mm (Φ4.4" × 3.2")
Package Dimension
134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Camera Weight
390 g (0.9 lb.)
With Package Weight
580 g (1.3 lb.) Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
Ingress protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
