Hikvision NEI-BTB4M2617 Vücut Sıcaklığı Ölçebilen Termografik Akıllı Bullet Network IP Kamera

Ücretsiz Kargo
Hızlı Gönderi
Taksitli Alışveriş

Hikvision NEI-BTB4M2617 Vücut Sıcaklığı Ölçebilen Termografik Akıllı Bullet Network IP Kamera

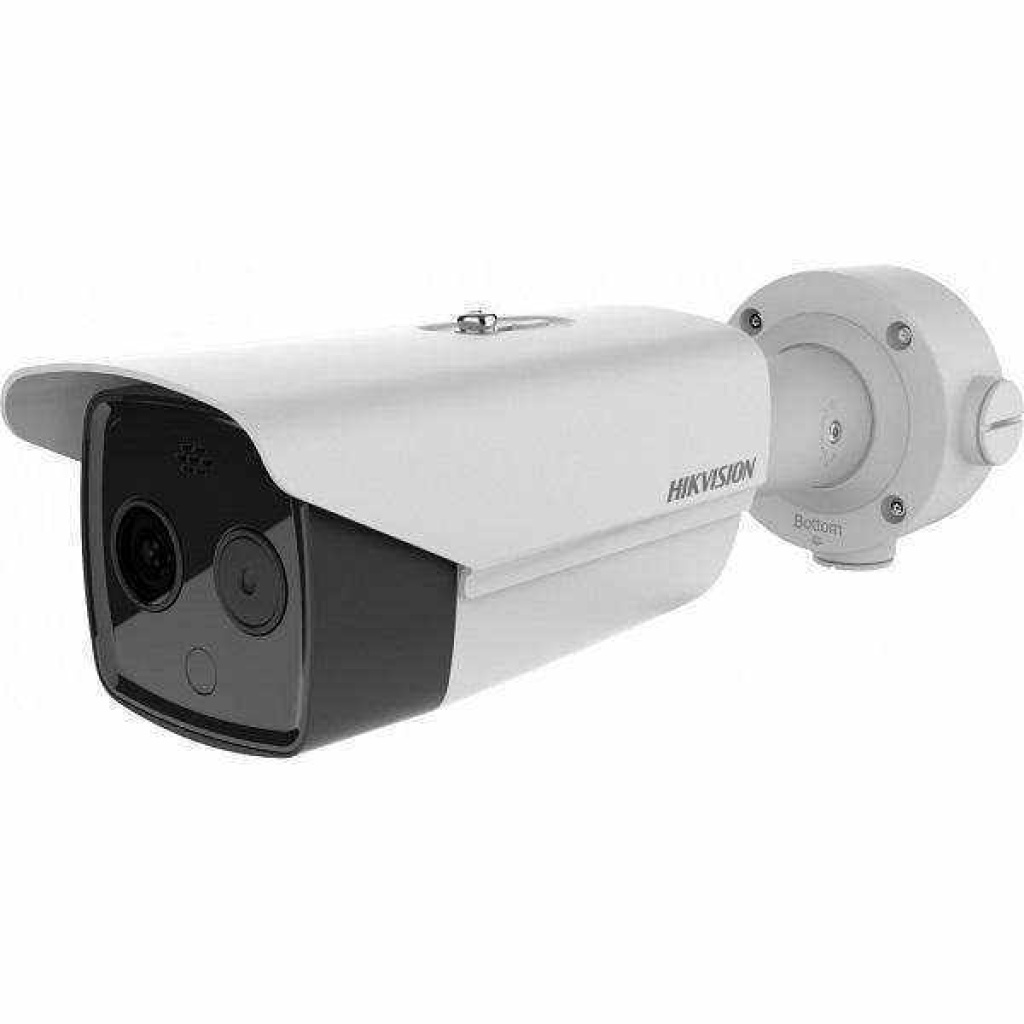

Hikvision NEI-BTB4M2617 Thermographic Bullet Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine.
Key Feature
● 160 × 120 resolution in thermal channel, high sensitivity sensor.
● Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
● Reliable temperature exception alarm function
● 3D DNR, image detail enhancement
● Audio alarm

Specification
Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution
160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval
17μm
Response Waveband
8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference)
≤ 40 mk (@25 °C, F# = 1.1)
Lens (Focal Length)
6.2 mm
IFOV
2.74 mrad
Field of View
25° × 18.7° (H × V)
Min. Focusing Distance
0.6 m
Aperture
F 1.1 Optical Module
Max. Image Resolution
2688 × 1520
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed
1 s to 1/100,000 s
Lens (Focal Length)
8 mm
Field of View
39.42° × 22.14° (H × V)
WDR
120 dB
Day & Night
IR cut filter with auto switch Image Function
Bi-spectrum Image Fusion
Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture
Combines details of thermal and optical image PIP, overlay thermal image on optical image Smart Function
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range
30°C to +45 °C
Temperature Accuracy
±0.5°C Infrared
IR Distance
Up to 40 m
IR Intensity and Angle
Automatically adjusted Network
Main Stream
