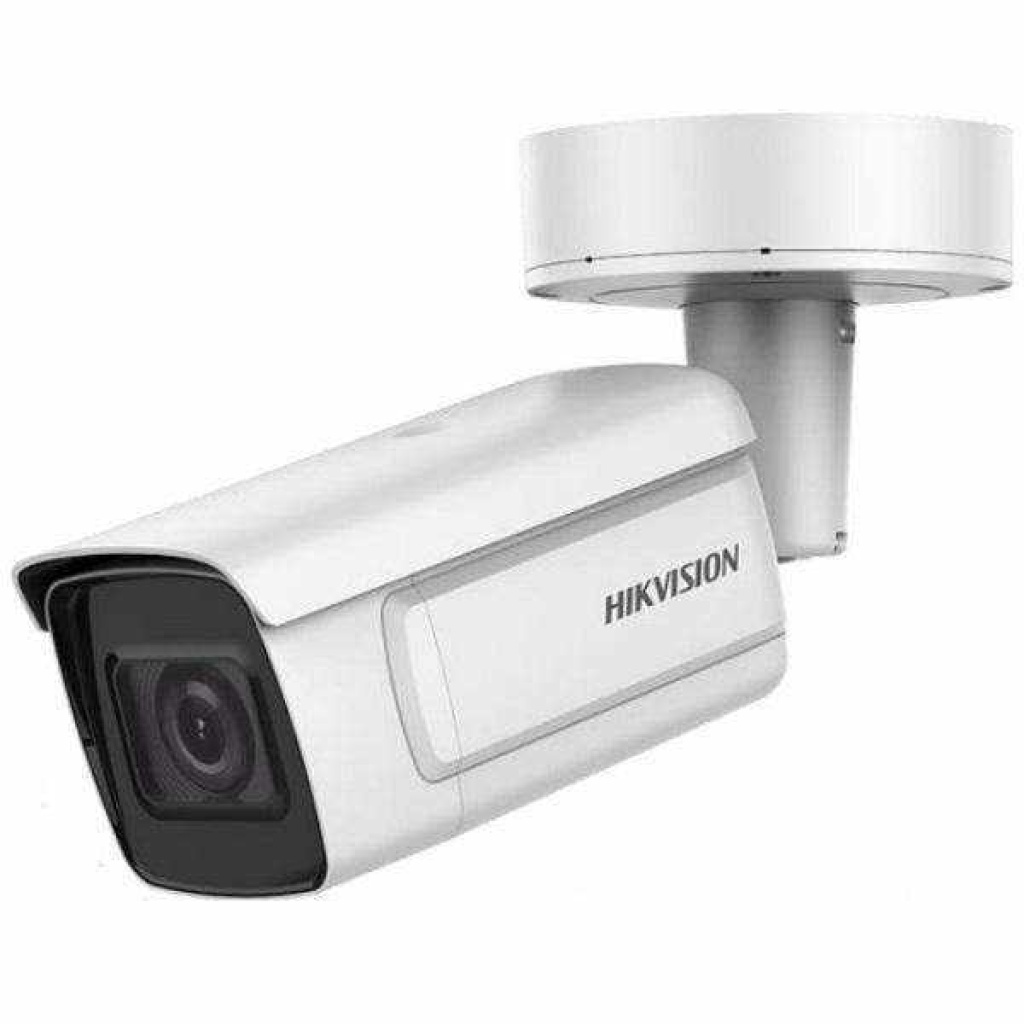

Hikvision NEI-B5A85 8MP 4K Kızılötesi (IR) Akıllı Bullet Network IP Kamera

Ücretsiz Kargo
Hızlı Gönderi
Taksitli Alışveriş

Hikvision NEI-B5A85 8MP 4K Kızılötesi (IR) Akıllı Bullet Network IP Kamera

● 1/1.8” Progressive Scan CMOS
● 3840 × 2160 @ 30fps
● MJPEG up to 1920 × 1080 @ 30fps
● 2.8 to 12 mm/8 to 32 mm motorized lens
● Color: 0.007 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.8, AGC ON), 0 Lux with IR
● H.265, H.265+, H.264, H.264+
● 120dB WDR
● 2.8 to 12 mm lens: IR range up to 50 m, 8 to 32 mm lens: IR range up to 100 m
● Alarm 2 inputs/2 outputs, audio 1 input/1 output, RS-485
● IP67, IK10
● 5 streams and up to 5 custom streams
● 6 behavior analyses, 2 exception detections, and face detection
● Built-in microSD/SDHC/SDXC card slot, up to 256 GB
● Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, and object removal are supported.
Function
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of the packet loss and error rate.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application development.
Specifications
Camera
Image Sensor
1/1.8ʺ Progressive Scan CMOS
Min. Illumination
Color: 0.007 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
Day & Night
IR cut filter
WDR
120 dB
Angle Adjustment
Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° Lens
Lens Type
Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Aperture
2.8 to 12 mm: F1.2 to 2.5
8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range
Focus
Auto, semi auto, manual
Auto-iris
P-iris
FOV
2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°
8 to 32 mm, horizontal FOV 39° to 15.6°, vertical FOV 21.8° to 8.9°, diagonal FOV 45° to 17.8°
Lens Mount
Integrated Illuminator
IR Range
2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
Wavelength
850 nm Video
Max. Resolution
3840 × 2160
Video Stream
5 defined streams and up to 5 custom stream
Main Stream
50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.264+
Main stream support
H.265 Type
Main Profile
H.265+
Main stream support
Video Bit Rate
32 Kbps to 16 Mbps
Scalable Video Coding (SVC)
H.264 and H.265 encoding Smart Feature-Set
Smart Event
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Face detection: detects faces and upload images
Scene change detection, defocus detection
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Statistics
Counting
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
Region of Interest
Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream Image
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping
Yes
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
SNR
≥52dB Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Network
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Smooth Streaming
Yes
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome57.0+,Firefox52.0+ Interface
Communication Interface
1 RJ45 10M/100M/1000M self-adaptive Ethernet port, RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Audio
1 input (line in), 1 output (line out), 3.5 mm connector, mono
Alarm
2 inputs, 2 outputs (max. 24 VDC/VAC, 1A)
Video Out
1Vp-p composite output (75 Ω/CVBS), only for adjustment
Power Output
12 VDC, max. 200mA
On-board storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB General
Firmware Version
5.6.0
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Reset
Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions
-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-condensing)
Storage Conditions
-30 °C to 65 °C (-22 °F to 149 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4)
Power Consumption and Current
-IZS: With extra load: 12 VDC, 1.28 A, max. 15.4 W; PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15.4 W; Without extra load: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W
-IZHS: With extra load: 12 VDC, 1.33 A, max. 15.9 W; PoE (802.3at, 42.5 V to 57 V), 0.50 A to 0.37 A, max. 21.2 W; Without extra load: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
"With extra load" means that an extra device is connected to and powered by the camera.
Heater
-H: yes
Material
Metal
Dimensions
Camera: Φ144 × 347 mm (Φ5.7ʺ × 13.7ʺ)
With package: 405 × 190 × 180 mm (15.9ʺ × 7.5ʺ × 7.1ʺ)
Weight
Camera: approx. 1.85 kg (4.07 lb.)
With package: approx. 2.95 kg (6.50 lb.) Approval
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Safety
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry
2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection
Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
* Listed
